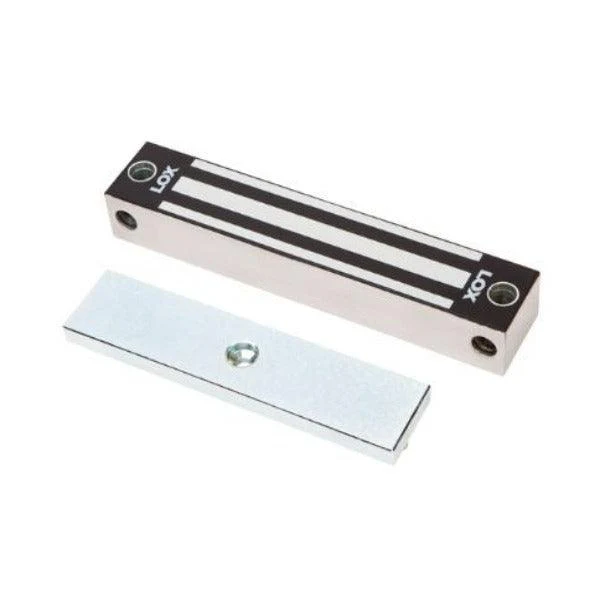

Lox EM4500 Weather Resistant Electro-Magnetic Mini Gate Lock Monitored

Secure your property with the LOX EM4500 Weather Resistant Mini Electro-Magnetic Gate Lock, a commercial-grade gate compactelectro-magnetic lock designed for reliable integration with access control systems, intercoms and electronic locking setups.

This model is built for dependable day-to-day operation and offers up to 200kg, lock status monitoring (lss), IP67, 12 / 24VDC.

🔐 Key Features

• Up to 200kg holding force
• Lock Status Monitoring (LSS)
• 12 / 24VDC operation
• IP67 weather resistance
• Built-in varistor (MOV) surge protection
• No residual magnetism
• Lifetime Warranty

⚙️ How an Electro-Magnetic Lock Works

An electro-magnetic lock secures a door by energising a magnet in the lock body and attracting the armature plate mounted on the door. When power is removed by the access control system, the door can be released.

Maglocks are widely used on commercial doors, gates and specialised access points where reliable electronic locking and straightforward integration are required.

📊 Technical Specifications

Model	EM4500
Type	Weather Resistant Mini Electro-Magnetic Gate Lock
Monitoring	Lock Status Monitoring (LSS)
Voltage	12 / 24VDC
Holding Force	Up to 200kg
Weather Rating	IP67
Mounting	Gate Lock
Warranty	Lifetime Warranty
Compliance / Approvals	CE & RCM

🏢 Ideal Applications

• External gates and perimeter entries
• Weather-exposed access control applications
• Commercial and industrial gate locking
• High-use outdoor security openings

🔒 Why Choose LOX Locking

LOX is trusted across Australia for commercial-grade electronic locking hardware designed for professional installers, access control integrators and security projects.

CTC Communications supplies LOX electric locks and accessories Australia-wide, with expert advice and professional installation services available across Sydney.
