Aiphone JOS-1VW-2M Smartphone Vandal Intercom kit, Two Monitors, JO Series

Two Aiphone intercom monitors make the ideal intercom for home or office, the JOS-1VW2M features handsfree design large 7" colour screens for viewing of vandal resistant door station, door release function and smartphone app for remote viewing.

The Aiphone JOS-1VW Smartphone Intercom Kit is a high-quality, hands-free video intercom solution, designed to enhance security and convenience for homes, offices, and gated properties. Featuring a large 7-inch touchscreen monitor, two-way audio communication, and mobile connectivity via the Intercom App Type B, this system enables real-time visitor verification and remote door unlocking from anywhere.

With Wi-Fi and network integration, expandable system support, and vandal-resistant construction, the JOS-1VW offers seamless security monitoring with easy installation.

What’s in the Intercom Kit?

📦 Complete System Includes:
✔ 1× 7" Touchscreen Intercom Monitor (JO-1MDW)

✔ 1× 7" Touchscreen Intercom Sub Monitor (JO-1FD)
✔ 1× Surface-Mounted Intercom Door Station (JO-DV)
✔ 1× Power Supply (PS-1820UL)
✔ 1× Rain Shield for Added Protection

Key Features

Smartphone Integration with Mobile Control

✔ Answer Video Calls & Unlock Doors from Your Smartphone
✔ View Live Feed from the Door Station Anytime, Anywhere

Large 7-Inch Touchscreen Monitor for Effortless Operation

✔ High-Resolution LCD for Clear Image Viewing
✔ Intuitive User Interface for Easy Navigation
✔ Stores & Plays Back Recorded Calls with MicroSD Expansion

Secure & Vandal-Resistant Door Station

✔ Die-Cast Zinc, Surface-Mounted Video Door Station
✔ Built-in 1/4" CMOS Camera for Clear Video Capture
✔ Automatic White LED Light for Night Vision Clarity

Expandable System for Advanced Access Control

✔ Supports Up to 8 Smartphones or Tablets for Remote Viewing
✔ Expandable with 1 Additional Door Station & 2 Indoor Room Stations
✔ Optional Ringer Extender for Enhanced Alerts

Durable, Weatherproof, & Reliable Design

✔ IP54-Rated Outdoor Unit for Water & Dust Resistance
✔ IK07 Impact Rating for Enhanced Durability

---

Installation & Compatibility

🔹 Professional Security Installer Recommended for Best Setup
🔹 Requires Network Connection & Active SIM for Mobile App Access
🔹 Supports Optional Aiphone 30° Plastic Angle Bracket (APHFEWKAWDV) for Angled Mounting

---

Ideal Use Cases

✔ Residential Homes & Apartments – Provides secure visitor screening & remote access
✔ Gated Communities & Villas – Enhances security with smartphone monitoring
✔ Office & Business Entry Systems – Enables controlled access & real-time communication

---

Technical Specifications

Indoor Monitor (AI-JO-1MDW)

• Display: 7” TFT LCD Touchscreen
• Resolution: 1024 × 600
• Internal Call Storage: Up to 10 Calls (Expandable with MicroSD Card, 32GB Max.)
• Power Supply: 12V DC / Standard PoE (IEEE802.3af)
• Communication: Hands-Free / Push-to-Talk (PTT) Mode
• Network Connectivity: Wi-Fi & Ethernet (RJ-45, 10/100 Mbps)

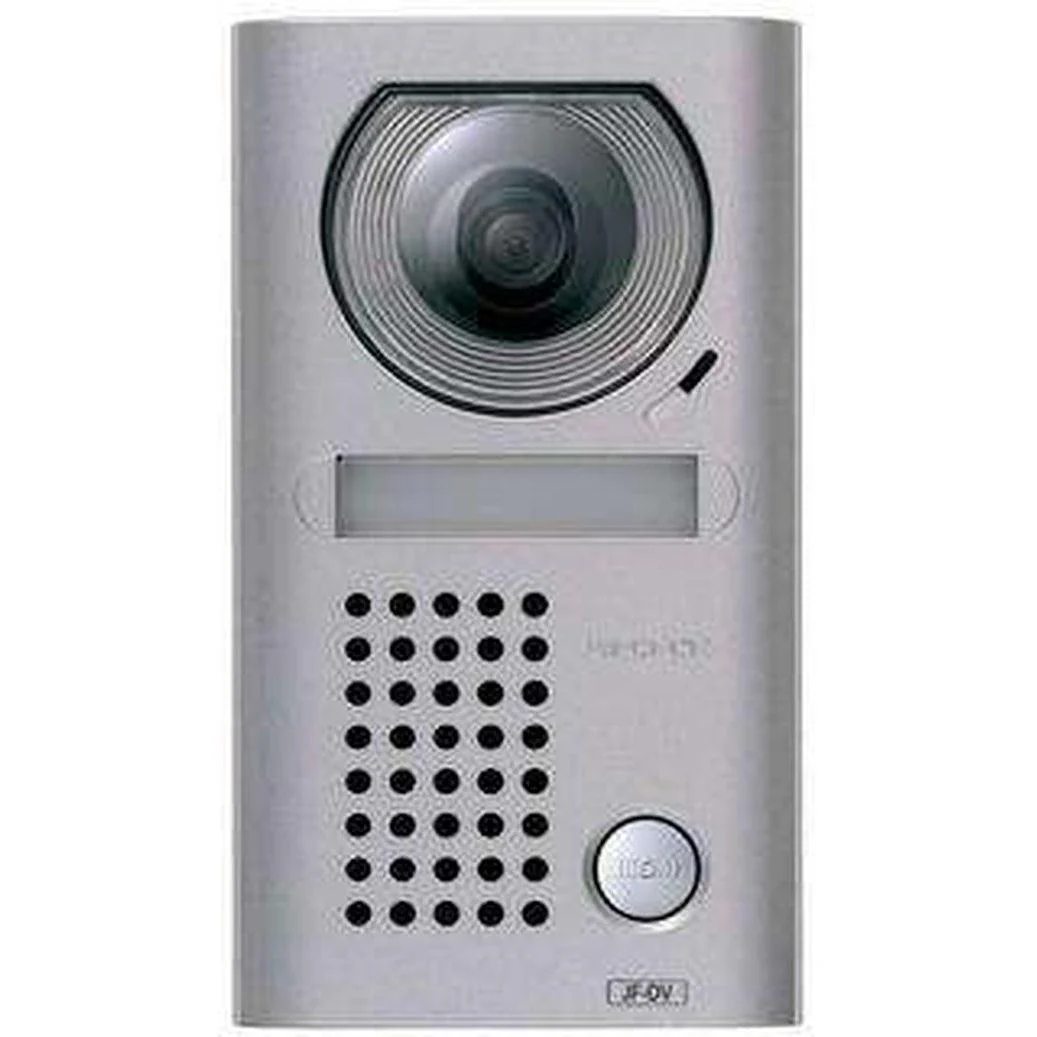

Outdoor Door Station (AI-JO-DV)

• Camera: 1/4” CMOS Color Sensor
• Resolution: 720 × 576
• Night Vision: White LED Light for Enhanced Visibility
• Build Material: Die-Cast Zinc with Stainless Steel Faceplate
• Weather Protection: IP54-Rated, Impact Resistant (IK07)
• Mounting: Flush or Surface Mounting
• Power Supply: Powered by Indoor Monitor

Power Supply (PS-1820UL)

• Input Voltage: 100-240V AC, 50/60Hz
• Output Voltage: 18V DC, 2A

---

Remote Access with Aiphone Intercom App (Type B)

📲 Receive Video Calls & Unlock Doors from Your Smartphone
📲 Monitor Live Feed from the Door Station & Connected Cameras
📲 Playback Recorded Calls from the On-Site Monitor or Mobile App
📲 Control & Configure the Intercom System Remotely

---

Why Choose the Aiphone JOS-1VW Smartphone Intercom?

The Aiphone JOS-1VW is a feature-rich, smartphone-compatible intercom system, perfect for residential and business security applications. With a large 7-inch touchscreen, mobile app integration, and vandal-resistant construction, this system provides modern security with enhanced access control and convenience.
